61803488 | LAPP
Uninsulated tube cable lug, 185 mm², AWG 350, 10 mm, M10, metal, 61803488
Order No.: 33P5504
EAN: 4064727134840
MPN:
61803488
ROHRKABELSCHUH KRFS 185/10
Unit Price (€ / pc.)
21.3724 € *
Available: 0 pcs.
Leadtime: On Request **

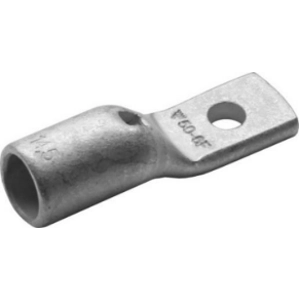

Tube cable lug, 61803488, LAPP
Tube cable lug for fine wire copper conductors, class 2, 5 and 6, easy to mount through cable glands.
Features
- Can be installed through cable glands, allowing pre-assembly
- High-quality electrolytic copper ensures a good crimping quality
Applications
- Tubular cable lugs with particularly narrow flange suitable for stranded, flexible and very flexible CU conductors 50 - 240 mm² (class 2, 5 & 6)
- Adapted for narrow spaces
Technical specifications
| Version | tube cable lug | |
| AWG cross-section | AWG 350 | |
| Colour | metal | |
| Thread size | M10 | |
| Isolated | No | |
| Cable cross-section | 185 mm² | |
| Hole diameter | 10 mm | |
| Material | electrolytic copper | |
| max. operating temperature | 90 °C | |
| shrinkable tubing | No |
Download
Logistics
| Country of origin | SE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
