63204405 | LAPP

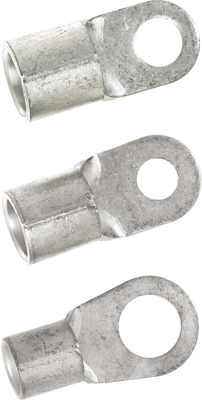

Uninsulated ring cable lug, 35 mm², 8.4 mm, M8, metal, 63204405
Order No.: 33P6425
EAN: 4044773461565
MPN:
63204405
KABELSCHUH KB 35-8R DIN 46234
Unit Price (€ / pc.)
0.8806 € *
Available: 0 pcs.
Leadtime: On Request **
Cable lug, 63204405, LAPP
Uninsulated cable lugs/solderless terminals according to DIN 46234, high-quality electrolytic copper for good conductivity, least resistance.
Features
- For first-class connection with simple operating principle
- Thus providing the best electrical conductivity (least resistance)
Applications
- For cables with category 2,5 and 6 conductors
- Manufacturing of control cabinets and equipment
- Trains and buses
Technical specifications
| Ausführung | Ringkabelschuh | |
| Farbe | metall | |
| Gewindegröße | M8 | |
| Isoliert | No | |
| Leiterquerschnitt | 35 mm² | |
| Lochdurchmesser | 8.4 mm | |
| Material | Elektrolytkupfer | |
| max. Temperatur | 120 °C | |
| Nenngröße nach DIN | DIN 46234 | |
| Schrumpfschlauch | No |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
