53320430 | LAPP
Multiple sealing insert, M20, head Ø 16.6 mm, NBR, black, for 4 x cable Ø 3 mm, 53320430
Unit Price (€ / pc.)
1.1781 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.18 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1781 €
10 pcs.
1.0472 €
25 pcs.
0.9639 €
50 pcs.
0.9044 €
100 pcs.
0.8449 €
*incl. VAT plus shipping costs
**Subject to prior sale

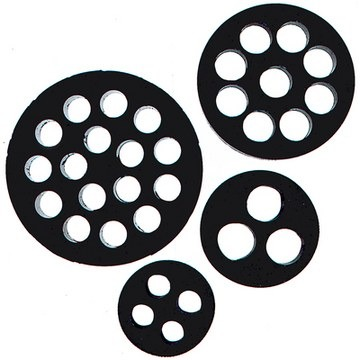

The SKINTOP® DIX is a sealing insert with several holes. The SKINTOP® cable gland with the multiple sealing insert allows several cables to be fed through one gland at the same time, thus saving installation space.
Material: NBR, color: black, temperature range: -40 °C to +100 °C. Hole diameter: 3 mm, number of holes: 4, height: 8.4 mm.
Material: NBR, color: black, temperature range: -40 °C to +100 °C. Hole diameter: 3 mm, number of holes: 4, height: 8.4 mm.
Technical specifications
| Version | M20 | |
| Colour | black | |
| Suitable for | 4 x cable Ø 3 mm | |
| Head Diameter | 16.6 mm | |
| Material | NBR | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -40 °C | |
| Accessory Type | multiple sealing insert |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 40169300 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
