53350147 | LAPP
Multiple sealing insert, M50, head Ø 41.8 mm, NBR, black, for 14 x cable Ø 7 mm, 53350147
Unit Price (€ / pc.)
6.9139 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
6.91 € *
Price list
Quantity
Price per unit*
1 pcs.
6.9139 €
10 pcs.
6.0928 €
25 pcs.
5.5930 €
50 pcs.
5.2598 €
100 pcs.
4.9385 €
*incl. VAT plus shipping costs
**Subject to prior sale

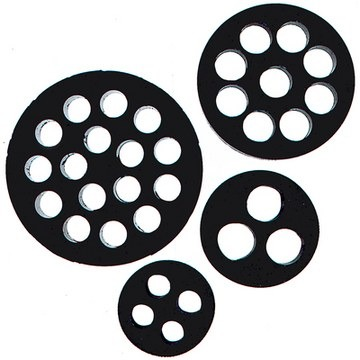

The SKINTOP® DIX is a sealing insert with several holes. The SKINTOP® cable gland with the multiple sealing insert allows several cables to be fed through one gland at the same time, thus saving installation space.
Material: NBR, color: black, temperature range: -40 °C to +100 °C. Hole diameter: 7 mm, number of holes: 14, height: 18 mm.
Material: NBR, color: black, temperature range: -40 °C to +100 °C. Hole diameter: 7 mm, number of holes: 14, height: 18 mm.
Technical specifications
| Ausführung | M50 | |
| Farbe | schwarz | |
| Geeignet für | 14 x Kabel-Ø 7 mm | |
| Kopfdurchmesser | 41.8 mm | |
| Material | NBR | |
| max. Temperatur | 100 °C | |
| min. Temperatur | -40 °C | |
| Zubehörart | Mehrfachdichteinsatz |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 40169300 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
