61822370 | LAPP
PVC marking sleeve, imprint "-", (L x W x H) 3 x 5.7 x 5.5 mm, max. bundle Ø 5 mm, yellow, 61822370
Order No.: 33P4564
EAN: 4044773395280
MPN:
61822370
MARKIERHÜLSE PC 30/- MINUS
Series: Bezeichnungsringe PC
Unit Price (€ / pc.)
0.0643 € *
Available: 0 pcs.
Leadtime: On Request **
Marking ring PC, 61822370, LAPP

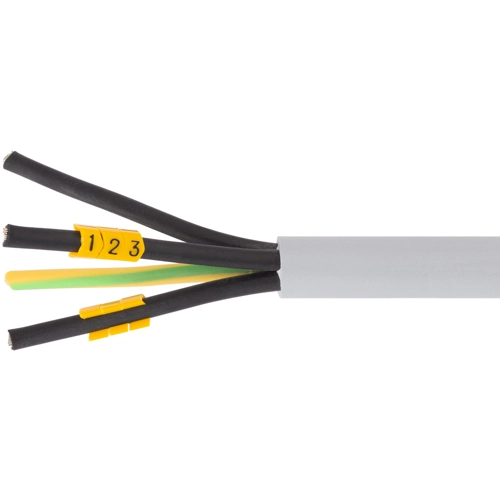

The 61822370 is an open marking ring with pre-printed characters and numbers for marking wires/single cores after assembly, Snap-On mechanism, flame-retardant according to UL 94 V. The shape ensures secure fixation to the cable, while the anti-rotation feature allows for a secure combination marking.
Features
- Flame-retardant
- UV-resistant
- Easy mounting through clipping

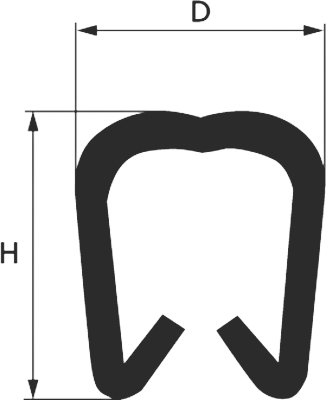

Technical specifications
| Imprint | - | |
| Version | cable maker | |
| Width | 5.7 mm | |
| Colour | yellow | |
| Height | 5.5 mm | |
| Length | 3 mm | |
| Material | PVC | |
| max. Bundle diameter | 5 mm | |
| Markable | No |
Download
Logistics
| Country of origin | QU |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
