61822720 | LAPP
PVC marking sleeve, imprint "V", (L x W x H) 4 x 6.9 x 6.7 mm, max. bundle Ø 6.2 mm, yellow, 61822720
Order No.: 33P4651
EAN: 4044773391909
MPN:
61822720
MARKIERHÜLSE PC 40/V
Series: Bezeichnungsringe PC
Unit Price (€ / pc.)
0.0666 € *
Available: 0 pcs.
Leadtime: On Request **
Marking ring PC, 61822720, LAPP

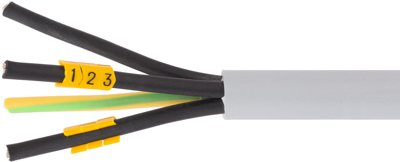

The 61822720 is an open marking ring with pre-printed characters and numbers for marking wires/single cores after assembly, Snap-On mechanism, flame-retardant according to UL 94 V. The shape ensures secure fixation to the cable, while the anti-rotation feature allows for a secure combination marking.
Features
- Flame-retardant
- UV-resistant
- Easy mounting through clipping
Technical specifications

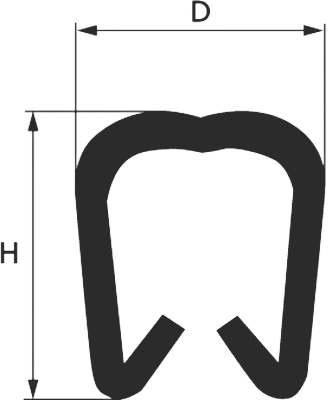

| Imprint | V | |
| Version | cable maker | |
| Width | 6.9 mm | |
| Colour | yellow | |
| Height | 6.7 mm | |
| Length | 4 mm | |
| Material | PVC | |
| max. Bundle diameter | 6.2 mm | |
| Markable | No |
Download
Logistics
| Country of origin | QU |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
