2170006 | LAPP
Coaxial cable, 50 Ω, RG 214/U, black
Unit Price (€ / mtr.)
8.9964 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
9.00 € *
Price list
Quantity
Price per unit*
100 mtr.
8.9964 €
500 mtr.
8.2586 €
*incl. VAT plus shipping costs
**Subject to prior sale

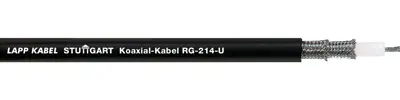

Coaxial cable RG 214/U, 2170006, LAPP
The 2170006 is a coaxial cable for radio and computer systems as well as applications related to commercial radio-frequency (high frequency) technology and electronics. It allows distortion-free and low-attenuation transmission of signals with a high bandwidth over shorter distances and were designed for operating frequencys up to 1 GHz. The cable is intended for limited movements and for fixed installation in dry and damp interiors and outdoors. It meets the requirements concerning high ambient temperatures and chemical stress.
Features
- Flame-retardant
- Mechanical and plant engineering
- Suitable for outdoor use
- Cold-resistant
- UV-resistant
Technical specifications
| Außendurchmesser | 10.8 mm | |
| Dielektrikum | PE | |
| Durchmesser des Dielektrikums | 7.25 mm | |
| Farbe | schwarz | |
| Impedanz | 50 Ω | |
| Kapazität/m | 101 pF/m | |
| Material | PVC | |
| max. Temperatur | 80 °C | |
| min. Temperatur | -40 °C | |
| Schirmung | geschirmt |
Download
Logistics
| Zolltarifnummer | 85442000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
