00100634/100 | LAPP
PVC control line ÖLFLEX CLASSIC 100 300/500 V 2 x 1.5 mm², AWG 16, unshielded, gray, 00100634/100
Order No.: 30P9066
EAN: 4044775069189
MPN:
00100634/100
ÖLFLEX CLASSIC 100 2X1,5
Series: ÖLFLEX CLASSIC 100 300/500 V
Unit Price (€ / mtr.)
2.0587 € *
Available: 75 mtr.
Leadtime: On Request **
Total Price:
2.06 € *
Price list
Quantity
Price per unit*
1 mtr.
2.0587 €
10 mtr.
1.8445 €
50 mtr.
1.6422 €
100 mtr.
1.4280 €
500 mtr.
1.2614 €
*incl. VAT plus shipping costs
**Subject to prior sale

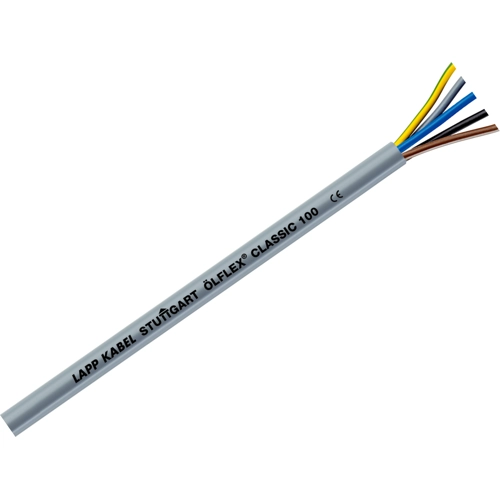

PVC Control cable, 00100634/100, LAPP
ÖLFLEX® CLASSIC 100 - flexible PVC cable, colour coded, control cable for various applications, 300/500V, also for YSLY or YY.
FEATURES
- Good chemical resistance
- Torsion-resistant
- Flame-retardant
- Space saving installation
Technical Data
- Cable material: Copper, bright
- Core insulation material: PVC
- Color: gray
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Core insulation material | PVC | |
| Core colour sequence | VDE 0293-308 | |
| Number of cores | 2 | |
| Version | control line | |
| Outer diameter | 6.3 mm | |
| AWG cross-section | AWG 16 | |
| Colour | gray | |
| Halogen free | No | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 1.5 mm² | |
| Material | PVC | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Standard number | EN 50525-2-51 | |
| Test voltage | 4 kV | |
| Shielding | unshielded | |
| Drag chain suitable | No | |
| Protective conductor available | No | |
| Temperature range (active) | -5 °C to 70 °C | |
| Temperature range (unmoved) | -40 °C to 80 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
