0012468/100 | LAPP

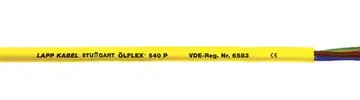

PUR connection line ÖLFLEX 540 P 3 G 2.5 mm², AWG 14, unshielded, yellow, 0012468/100
Unit Price (€ / mtr.)
7.0805 € *
Available: 0 mtr.
Leadtime: On Request **
PUR Power cable, 0012468/100, LAPP
ÖLFLEX® 540 P - PUR power cable, VDE certified outdoor use an constructions sites with yellow jacket colour - cold flexible, abrasion resistant, halogen-free .
FEATURES
- Mechanical resistance
- Halogen-free
- Cold-resistant
- Suitable for outdoor use
Technical Data
- Cable material: Copper, tin-plated
- Core insulation material: PUR
- Color: yellow
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Core insulation material | TPE | |
| Core colour sequence | VDE 0293-308 | |
| Number of cores | 3 | |
| Version | connection line | |
| Outer diameter | 10.3 mm | |
| AWG cross-section | AWG 14 | |
| Colour | yellow | |
| Halogen free | Yes | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 2.5 mm² | |
| Material | PUR | |
| Rated voltage | 750 V | |
| Rated voltage U0 | 450 V | |
| Standard number | VDE | |
| Test voltage | 3 kV | |
| Shielding | unshielded | |
| Drag chain suitable | No | |
| Protective conductor available | Yes | |
| Temperature range (active) | -40 °C to 90 °C | |
| Temperature range (unmoved) | -50 °C to 90 °C |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
