00127653 | LAPP

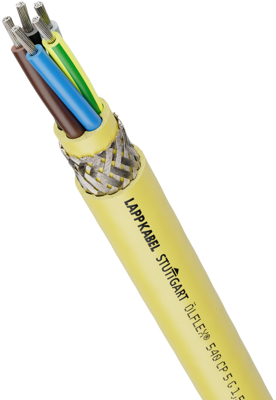

PUR connection cable ÖLFLEX 540 CP 5 G 1.5 mm², shielded, yellow, 00127653
Unit Price (€ / mtr.)
17.6477 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Connection cable, 00127653, LAPP
Features
- Resistant to oil and drilling fluids
- Abrasion and notch-resistant
- Halogen-free and flame-retardant
- Flexible down to -40°C
Applications
- Connection and extension cables
- Construction machinery
- Building sites, camp sites, stage applications
- Agricultural equipment
- For indoor and outdoor use
Technical specifications
| Core insulation material | TPE | |
| Number of cores | 5 | |
| Version | Anschlussleitung | |
| Outer diameter | 13.7 mm | |
| Colour | gelb | |
| Halogen free | Yes | |
| Conductor category | Kl.5 = feindrähtig | |
| Cable material | Kupfer, verzinnt | |
| Cable cross-section | 1,5 mm² | |
| Material | PUR | |
| Rated voltage | 750 V | |
| Rated voltage U0 | 450 V | |
| Standard number | VDE | |
| Test voltage | 3 kV | |
| Shielding | geschirmt | |
| Drag chain suitable | No | |
| Protective conductor available | Yes | |
| Temperature range (active) | -40 °C bis 90 °C | |
| Temperature range (unmoved) | -50 °C bis 90 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
