0012804 | LAPP

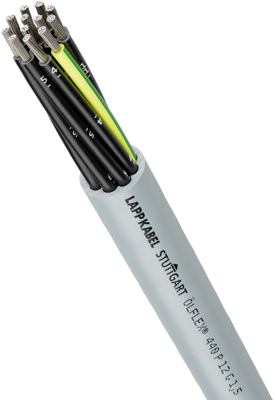

PUR control line ÖLFLEX 440 P 7 G 0.5 mm², unshielded, gray, 0012804
Unit Price (€ / mtr.)
7.0448 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Control cable, 0012804, LAPP
Features
- Resistant to oil and drilling fluids
- Abrasion and notch-resistant
- Halogen-free and flame-retardant
- Resistant to hydrolysis and microbes
- Mechanical resistance
- Flexible down to -40°C
Applications
- Industrial machinery and machine tools
- Very suitable for oily wet areas within machinery and production lines that are subject to normal mechanical stress
- Construction machinery
- Agricultural equipment
- For indoor and outdoor use
Technical specifications
| Core insulation material | TPE | |
| Core colour sequence | schwarz/grün-gelb | |
| Number of cores | 7 | |
| Version | Steuerleitung | |
| Outer diameter | 8.8 mm | |
| Colour | grau | |
| Halogen free | Yes | |
| Conductor category | Kl.5 = feindrähtig | |
| Cable material | Kupfer, verzinnt | |
| Cable cross-section | 0,5 mm² | |
| Material | PUR | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Standard number | IEC, EN | |
| Test voltage | 3 kV | |
| Shielding | ungeschirmt | |
| Drag chain suitable | No | |
| Protective conductor available | Yes | |
| Temperature range (active) | -40 °C bis 90 °C | |
| Temperature range (unmoved) | -50 °C bis 90 °C |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
