0026012/100 | LAPP
PVC connection line ÖLFLEX HEAT 105 MC 3 G 1.5 mm², AWG 16, unshielded, black, 0026012/100
Order No.: 31P6958
EAN: 4044774657219
MPN:
0026012/100
ÖLFLEX HEAT 105 MC 3G1,5
Series: ÖLFLEX HEAT 105 MC
Unit Price (€ / mtr.)
3.4629 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
3.46 € *
Price list
Quantity
Price per unit*
1 mtr.
3.4629 €
10 mtr.
3.0107 €
50 mtr.
2.7846 €
100 mtr.
2.5585 €
500 mtr.
2.4038 €
*incl. VAT plus shipping costs
**Subject to prior sale

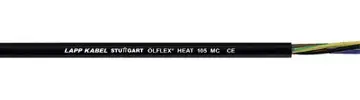

Connection cable, 0026012/100, LAPP KABEL
Colour-coded connection cable made of high heat-resistant PVC.
Features
- Temperature-resistant
- UV-resistant
- Resistant to acids, alkalis and oils
Technical specifications
| Core insulation material | PVC | |
| Core colour sequence | VDE 0293-308 | |
| Number of cores | 3 | |
| Version | connection line | |
| Outer diameter | 8.1 mm | |
| AWG cross-section | AWG 16 | |
| Colour | black | |
| Halogen free | No | |
| Cable material | copper, bright | |
| Cable cross-section | 1.5 mm² | |
| Material | PVC | |
| Rated voltage | 300 V | |
| Rated voltage U0 | 500 V | |
| Standard number | EN 50525-2-11 | |
| Test voltage | 2.5 kV | |
| Shielding | unshielded | |
| Drag chain suitable | No | |
| Protective conductor available | Yes |
Download
Logistics
| Country of origin | BG |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
