0026102/100 | LAPP

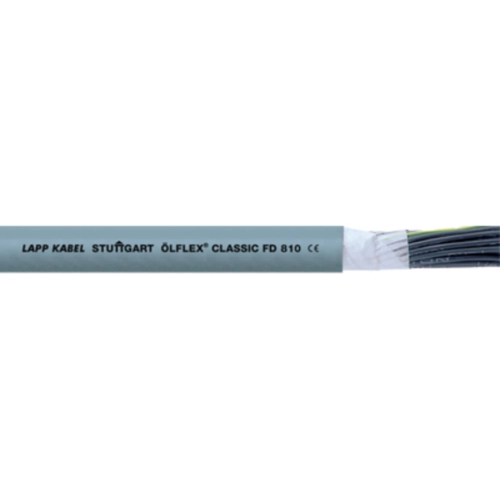

PVC connection and control cable ÖLFLEX CLASSIC FD 810 4 G 0.5 mm², AWG 20, unshielded, gray, 0026102/100
Order No.: 31P4556
EAN: 4044774619163
MPN:
0026102/100
ÖLFLEX CLASSIC FD 810 4G0,5
Series: ÖLFLEX CLASSIC FD 810
Unit Price (€ / mtr.)
2.7251 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
2.73 € *
Price list
Quantity
Price per unit*
1 mtr.
2.7251 €
10 mtr.
2.4276 €
50 mtr.
2.0111 €
100 mtr.
1.8683 €
500 mtr.
1.7136 €
*incl. VAT plus shipping costs
**Subject to prior sale
PVC Control cable, 0026102/100, LAPP
ÖLFLEX® CLASSIC FD 810 - Power and control cable for versatile use in power chains.
FEATURES
- Highly flexible
- Oil-resistant
- Power chain
- Flame-retardant
Technical Data
- Cable material: Copper, bright
- Core insulation material: PVC
- Color: gray
- Conductor category: Cl.6 = finest-stranded
Technical specifications
| Core insulation material | PVC | |
| Core colour sequence | schwarz | |
| Number of cores | 4 | |
| Version | Anschluss- und Steuerleitung | |
| Outer diameter | 6.3 mm | |
| AWG cross-section | AWG 20 | |
| Colour | grau | |
| Halogen free | No | |
| Conductor category | Kl.6 = feinstdrähtig | |
| Cable material | Kupfer, blank | |
| Cable cross-section | 0,5 mm² | |
| Material | PVC | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Standard number | VDE | |
| Test voltage | 4 kV | |
| Shielding | ungeschirmt | |
| Drag chain suitable | No | |
| Protective conductor available | Yes | |
| Temperature range (active) | 0 °C bis 70 °C | |
| Temperature range (unmoved) | -40 °C bis 80 °C |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
