0026357 | LAPP

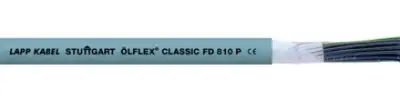

PUR control line ÖLFLEX CLASSIC FD 810 P 25 G 1.5 mm², AWG 16, unshielded, gray, 0026357
Order No.: 32P9951
EAN: 4044774625256
MPN:
0026357
ÖLFLEX CLASSIC FD 810 P 25G1,5
Series: ÖLFLEX CLASSIC FD 810 P
Unit Price (€ / mtr.)
28.0245 € *
Available: 0 mtr.
Leadtime: On Request **
Control line, 0026357, LAPP
The 0026300 is oil resistant high-flexible control cable with an outer sheath of polyurethane for flexible use and fixed installation.
Features
- Flame-retardant
- High oil-resistance
- Abrasion and notch-resistant
- Low-adhesive surface
Applications
- In power chains or moving machine parts
- Particularly in wet areas of machine tools and transfer lines
- Power circuits for electrical equipments used in automation engineering
- Suitable for use in measuring, control and regulating circuits
- Assembly lines, production lines, in all kinds of machines
- In dry, damp or wet interiors with normal mechanical stress conditions
Technical specifications
| Aderisolationsmaterial | PVC | |
| Adernfarbe | schwarz | |
| Anzahl der Adern | 25 | |
| Ausführung | Steuerleitung | |
| Außendurchmesser | 18.6 mm | |
| AWG-Leiterquerschnitt | AWG 16 | |
| Farbe | grau | |
| Halogenfrei | No | |
| Leiterklasse | Kl.6 = feinstdrähtig | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 1,5 mm² | |
| Material | PUR | |
| Nennspannung | 500 V | |
| Nennspannung U0 | 300 V | |
| Prüfspannung | 4 kV | |
| Schirmung | ungeschirmt | |
| Schleppkettentauglich | Yes | |
| Schutzleiter vorhanden | Yes | |
| Temperaturbereich (bewegt) | -5 °C bis 70 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 80 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444995 |
| Originalverpackung | Ring mit 100 Meter |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
