0027532 | LAPP

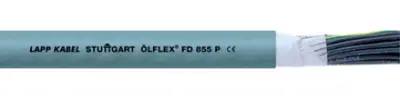

PUR control line ÖLFLEX FD 855 P 5 G 0.5 mm², AWG 20, unshielded, gray, 0027532
Unit Price (€ / mtr.)
4.3435 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Control line, 0027532, LAPP
Halogen-free, highly flexible control cable with abrasion-resistant, oil-resistant with an outer sheath of polyurethane for applications under harsh operating conditions.
Features
- Halogen-free and flame-retardant
- Resistant to oil and drilling fluids
- Abrasion and notch-resistant
- Low-adhesive surface
- Flexible down to -40°C
Applications
- In power chains or moving machine parts
- Particularly in wet areas of machine tools and transfer lines
- Assembly lines, production lines, in all kinds of machines
- For use in assembling & pick-and-place machinery
- For highly dynamic applications
- For indoor and outdoor use
Technical specifications
| Core insulation material | TPE | |
| Core colour sequence | schwarz | |
| Number of cores | 5 | |
| Version | Steuerleitung | |
| Outer diameter | 6.6 mm | |
| AWG cross-section | AWG 20 | |
| Colour | grau | |
| Halogen free | Yes | |
| Conductor category | Kl.6 = feinstdrähtig | |
| Cable material | Kupfer, blank | |
| Cable cross-section | 0,5 mm² | |
| Material | PUR | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Standard number | UL, CSA | |
| Test voltage | 3 kV | |
| Shielding | ungeschirmt | |
| Drag chain suitable | Yes | |
| Protective conductor available | Yes | |
| Temperature range (active) | -40 °C bis 80 °C | |
| Temperature range (unmoved) | -50 °C bis 80 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
| Original Packaging | Ring mit 100 Meter |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
