0027536 | LAPP

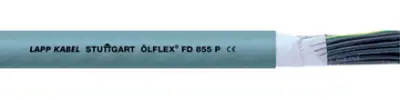

PUR control line ÖLFLEX FD 855 P 18 G 0.5 mm², AWG 20, unshielded, gray, 0027536
Unit Price (€ / mtr.)
11.8286 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Control line, 0027536, LAPP
Halogen-free, highly flexible control cable with abrasion-resistant, oil-resistant with an outer sheath of polyurethane for applications under harsh operating conditions.
Features
- Halogen-free and flame-retardant
- Resistant to oil and drilling fluids
- Abrasion and notch-resistant
- Low-adhesive surface
- Flexible down to -40°C
Applications
- In power chains or moving machine parts
- Particularly in wet areas of machine tools and transfer lines
- Assembly lines, production lines, in all kinds of machines
- For use in assembling & pick-and-place machinery
- For highly dynamic applications
- For indoor and outdoor use
Technical specifications
| Aderisolationsmaterial | TPE | |
| Adernfarbe | schwarz | |
| Anzahl der Adern | 18 | |
| Ausführung | Steuerleitung | |
| Außendurchmesser | 10.9 mm | |
| AWG-Leiterquerschnitt | AWG 20 | |
| Farbe | grau | |
| Halogenfrei | Yes | |
| Leiterklasse | Kl.6 = feinstdrähtig | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 0,5 mm² | |
| Material | PUR | |
| Nennspannung | 500 V | |
| Nennspannung U0 | 300 V | |
| Norm | UL, CSA | |
| Prüfspannung | 3 kV | |
| Schirmung | ungeschirmt | |
| Schleppkettentauglich | Yes | |
| Schutzleiter vorhanden | Yes | |
| Temperaturbereich (bewegt) | -40 °C bis 80 °C | |
| Temperaturbereich (unbewegt) | -50 °C bis 80 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444995 |
| Originalverpackung | Ring mit 100 Meter |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
