0046002/100 | LAPP

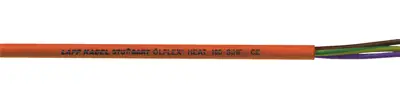

Silicone connection and control cable ÖLFLEX HEAT 180 SIHF 3 G 0.75 mm², AWG 19, unshielded, red brown, 0046002/100
Order No.: 94F801
EAN: 4044774666556
MPN:
0046002/100
ÖLFLEX HEAT 180 SIHF
Series: ÖLFLEX HEAT 180 SIHF
Unit Price (€ / mtr.)
3.7961 € *
Available: 24 mtr.
Leadtime: 1 Week **
Total Price:
3.80 € *
Price list
Quantity
Price per unit*
1 mtr.
3.7961 €
10 mtr.
3.3677 €
50 mtr.
2.9155 €
100 mtr.
2.6894 €
500 mtr.
2.4871 €
*incl. VAT plus shipping costs
**Subject to prior sale
Silicon cables, halogen-free, type Lapp Kabel ÖLFLEX HEAT 180 SiHF.
Halogen-free, flame retardant to IEC 60332-1-2, tinned stranded copper fine-wire
Technical specifications
| Core insulation material | Silikon | |
| Core colour sequence | VDE 0293-308 | |
| Number of cores | 3 | |
| Version | Anschluss- und Steuerleitung | |
| Outer diameter | 6 mm | |
| AWG cross-section | AWG 19 | |
| Colour | rotbraun | |
| Halogen free | Yes | |
| Conductor category | Kl.5 = feindrähtig | |
| Cable material | Kupfer, verzinnt | |
| Cable cross-section | 0,75 mm² | |
| Material | Silikon | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Standard number | EN 50525-2-83 | |
| Test voltage | 2 kV | |
| Shielding | ungeschirmt | |
| Drag chain suitable | No | |
| Protective conductor available | Yes | |
| Temperature range (unmoved) | -60 °C bis 180 °C |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85444995 |
| Original Packaging | Ring mit 100 Meter |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
