00462033 | LAPP

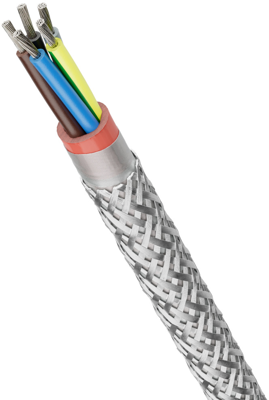

Silicone connection line ÖLFLEX HEAT 180 GLS 4 G 0.75 mm², unshielded, 00462033
Order No.: 33P1010
EAN: 4044774668437
MPN:
00462033
ÖLFLEX HEAT 180 GLS 4G0,75
Series: ÖLFLEX HEAT 180 GLS
Unit Price (€ / mtr.)
7.0091 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Connection cable, 00462033, LAPP
Features
- Halogen-free
- No corrosive gases
- Flame-retardant
- Only suitable for use in dry conditions
- Adequate ventilation must be ensured, since the mechanical properties of silicone cables decrease from +100°C in the absence of air
Applications
- Areas with high ambient temperatures and occasionally mechanical stress
- Steel and glass works
- Cement and ceramic works
- Foundries
- Shipbuilding industry
- Furnace construction
Technical specifications
| Aderisolationsmaterial | Silikon | |
| Adernfarbe | VDE 0293-308 | |
| Anzahl der Adern | 4 | |
| Ausführung | Anschlussleitung | |
| Außendurchmesser | 8.8 mm | |
| Halogenfrei | Yes | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 0,75 mm² | |
| Material | Silikon | |
| Nennspannung | 500 V | |
| Nennspannung U0 | 300 V | |
| Prüfspannung | 2 kV | |
| Schirmung | ungeschirmt | |
| Schleppkettentauglich | No | |
| Schutzleiter vorhanden | Yes | |
| Temperaturbereich (unbewegt) | -50 °C bis 180 °C |
Download
Logistics
| Ursprungsland | IT |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
