00469153 | LAPP

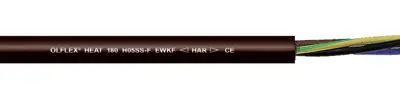

Silicone connection line ÖLFLEX HEAT 180 H05SS-F EWKF 5 G 2.5 mm², unshielded, black, 00469153
Order No.: 33P1047
EAN: 4044774672014
MPN:
00469153
ÖLFLEX HEAT 180 H05SS-F EWKF 5G2,5
Series: ÖLFLEX HEAT 180 H05SS-F EWKF
Unit Price (€ / mtr.)
11.6501 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Connection cable, 00469153, LAPP
Features
- Halogen-free
- No corrosive gases
- Flame-retardant
- Good hydrolysis and UV-resistance
- Resistant to a multitude of oils, alcohols, vegetable and animal fats and chemical substances
- Adequate ventilation must be ensured, since the mechanical properties of silicone cables decrease from +100°C in the absence of air
Applications
- Areas with high ambient temperatures and occasionally mechanical stress
- Steel, ceramic and iron works
- Bakery equipment and industrial furnaces
- Electric motor industry
- Sauna/solarium construction
- Thermal and heating elements
Technical specifications
| Aderisolationsmaterial | Silikon | |
| Adernfarbe | VDE 0293-308 | |
| Anzahl der Adern | 5 | |
| Ausführung | Anschlussleitung | |
| Außendurchmesser | 12.9 mm | |
| Farbe | schwarz | |
| Halogenfrei | Yes | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 2,5 mm² | |
| Material | Silikon | |
| Nennspannung | 500 V | |
| Nennspannung U0 | 300 V | |
| Prüfspannung | 2 kV | |
| Schirmung | ungeschirmt | |
| Schleppkettentauglich | No | |
| Schutzleiter vorhanden | Yes | |
| Temperaturbereich (unbewegt) | -50 °C bis 180 °C |
Download
Logistics
| Ursprungsland | IT |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
