0091230 | LAPP

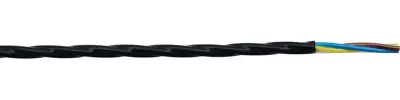

FEP connection line ÖLFLEX HEAT 205 MC 2 x 1.0 mm², unshielded, black, 0091230
Order No.: 33P1085
EAN: 4044774672731
MPN:
0091230
ÖLFLEX HEAT 205 MC 2X1
Series: ÖLFLEX HEAT 205 MC
Unit Price (€ / mtr.)
10.2816 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Connection cable, 0091230, LAPP
Features
- High dielectric strength and high abrasion resistance
- Low water absorption
- Resistant to microbes
- Adhesion free insulation materials
- Flame-retardant
Applications
- For use in environments with very high operating temperatures, heavy usage of chemical agents or confined spaces
- Industrial furnace construction
- Foundries
- Chemical industry
- Power plant engineering
- Heating elements
Technical specifications
| Aderisolationsmaterial | FEP | |
| Adernfarbe | VDE 0293-308 | |
| Anzahl der Adern | 2 | |
| Ausführung | Anschlussleitung | |
| Außendurchmesser | 4.5 mm | |
| Farbe | schwarz | |
| Halogenfrei | No | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 1,0 mm² | |
| Material | FEP | |
| Nennspannung | 500 V | |
| Nennspannung U0 | 300 V | |
| Prüfspannung | 2.5 kV | |
| Schirmung | ungeschirmt | |
| Schleppkettentauglich | No | |
| Schutzleiter vorhanden | No | |
| Temperaturbereich (unbewegt) | -100 °C bis 205 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
