0091322 | LAPP

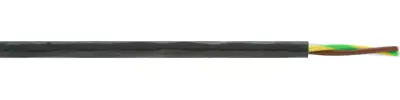

PTFE connection cable ÖLFLEX HEAT 260 MC 5 G 2.5 mm², unshielded, black, 0091322
Order No.: 33P1122
EAN: 4044774673400
MPN:
0091322
ÖLFLEX HEAT 260 MC 5G2,5
Series: ÖLFLEX HEAT 260 MC
Unit Price (€ / mtr.)
33.3914 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Connection cable, 0091322, LAPP
Features
- High dielectric strength and high abrasion resistance
- Low water absorption
- Resistant to microbes
- Adhesion free insulation materials
Applications
- For use in environments with very high operating temperatures, heavy usage of chemical agents or confined spaces
- Industrial furnace construction
- Foundries
- Chemical industry
- Power plant engineering
- Heating elements
- Sensor systems, e.g. level sensors
Technical specifications
| Aderisolationsmaterial | PTFE | |
| Adernfarbe | VDE 0293-308 | |
| Anzahl der Adern | 5 | |
| Ausführung | Anschlussleitung | |
| Außendurchmesser | 8.5 mm | |
| Farbe | schwarz | |
| Halogenfrei | No | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, vernickelt | |
| Leiterquerschnitt | 2,5 mm² | |
| Material | PTFE | |
| Nennspannung | 500 V | |
| Nennspannung U0 | 300 V | |
| Prüfspannung | 2.5 kV | |
| Schirmung | ungeschirmt | |
| Schleppkettentauglich | No | |
| Schutzleiter vorhanden | Yes | |
| Temperaturbereich (unbewegt) | -190 °C bis 260 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
