1024437 | LAPP

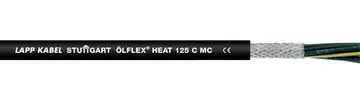

PE copolymer control line ÖLFLEX HEAT 125 C MC 7 G 2.5 mm², AWG 14, shielded, black, 1024437
Order No.: 31P7043
EAN: 4064728762202
MPN:
1024437
ÖLFLEX HEAT 125 C MC 7G2.5
Series: ÖLFLEX HEAT 125 C MC
Unit Price (€ / mtr.)
39.3295 € *
Available: 0 mtr.
Leadtime: On Request **
Cross-linked cable, 1024437/100, LAPP KABEL
Electron beam cross-linked cable, halogen free shielded control cable with special fire performance.
Features
- Temperature-resistant
- UV-resistant
- Cold-resistant
- Halogen-free
Technical specifications
| Core insulation material | Polyolefin copolymer | |
| Number of cores | 7 | |
| Version | control line | |
| Outer diameter | 14.4 mm | |
| AWG cross-section | AWG 14 | |
| Colour | black | |
| Halogen free | Yes | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 2.5 mm² | |
| Material | PE copolymer | |
| Standard number | DNV GL | |
| Shielding | shielded | |
| Drag chain suitable | No | |
| Protective conductor available | Yes | |
| Temperature range (active) | -35 °C to 120 °C | |
| Temperature range (unmoved) | -55 °C to 125 °C |
Download
Logistics
| Country of origin | KR |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
