1026792 | LAPP

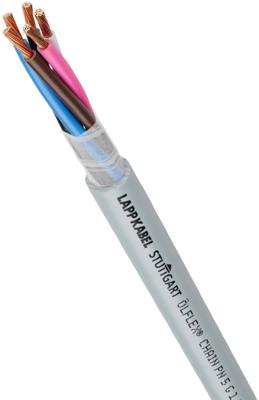

PVC connection cable ÖLFLEX CHAIN PN 5 G 0.75 mm², AWG 19, unshielded, gray, 1026792
Unit Price (€ / mtr.)
2.7370 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Connection cable, 1026792, LAPP
Features
- Designed for 2 million alternating bending cycles and travel distances up to 10 meter
- Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
- Oil-resistant
- Low-adhesive surface
Applications
- In power chains or moving machine parts
- In dry, damp or wet interiors
- Suitable for use in measuring, control and regulating circuits
- Wiring of machines, tools, devices, appliances and control cabinets
- Only for outdoor use within the indicated operating temperature range, with UV-protection
Technical specifications
| Core insulation material | PVC | |
| Core colour sequence | blau/braun/schwarz/rosa | |
| Number of cores | 5 | |
| Version | Anschlussleitung | |
| Outer diameter | 7.1 mm | |
| AWG cross-section | AWG 19 | |
| Colour | grau | |
| Halogen free | No | |
| Conductor category | Kl.5 = feindrähtig | |
| Cable material | Kupfer, blank | |
| Cable cross-section | 0,75 mm² | |
| Material | PVC | |
| Rated voltage | 300 V | |
| Rated voltage U0 | 300 V | |
| Rated voltage UL/CSA | 1 kV | |
| Test voltage | 1.5 kV | |
| Shielding | ungeschirmt | |
| Drag chain suitable | Yes | |
| Protective conductor available | Yes | |
| Temperature range (active) | -0 °C bis 90 °C | |
| Temperature range (unmoved) | -40 °C bis 90 °C |
Download
Logistics
| Country of origin | QU |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
