1027837 | LAPP

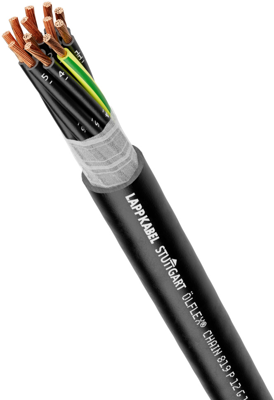

PUR control line ÖLFLEX CHAIN 819 P 25 G 1.5 mm², black, 1027837
Order No.: 33P6545
EAN: 4044777657919
MPN:
1027837
ÖLFLEX CHAIN 819 P 25G1,5
Series: ÖLFLEX CHAIN 819 P
Unit Price (€ / mtr.)
17.2074 € *
Available: 0 mtr.
Leadtime: On Request **
Control line, 1027837, LAPP
The 1027837 highly flexible control cable with PVC core insulation and robust, oil-resistant outer sheath of PU-special blend.
Features
- High oil-resistance
- Mechanically robust
- Low-adhesive surface
- Durable thanks to robust sheath material
Applications
- In power chains or moving machine parts
- Very suitable for oily wet areas within machinery and production lines
- Assembly lines, production lines, in all kinds of machines
- Suitable for use in measuring, control and regulating circuits
- Indoor applications or dry rooms
Technical specifications
| Aderisolationsmaterial | PVC | |
| Adernfarbe | schwarz | |
| Anzahl der Adern | 25 | |
| Ausführung | Steuerleitung | |
| Außendurchmesser | 17.9 mm | |
| Farbe | schwarz | |
| Halogenfrei | No | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 1,5 mm² | |
| Material | PUR | |
| Nennspannung | 500 V | |
| Nennspannung U0 | 300 V | |
| Nennspannung UL/CSA | 1 kV | |
| Norm | UL, CSA | |
| Prüfspannung | 4 kV | |
| Schleppkettentauglich | Yes | |
| Schutzleiter vorhanden | Yes | |
| Temperaturbereich (bewegt) | -5 °C bis 70 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 70 °C |
Download
Logistics
| Ursprungsland | FR |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
