11070099 | LAPP

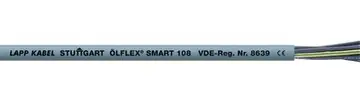

PVC control line ÖLFLEX SMART 108 7 G 0.75 mm², AWG 19, unshielded, gray, 11070099
Order No.: 30P7396
EAN: 4044776760573
MPN:
11070099
ÖLFLEX SMART 108 7G0,75
Series: ÖLFLEX SMART 108
Unit Price (€ / mtr.)
2.3800 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
2.38 € *
Price list
Quantity
Price per unit*
1 mtr.
2.3800 €
10 mtr.
2.0468 €
50 mtr.
1.8207 €
100 mtr.
1.5827 €
500 mtr.
1.4637 €
*incl. VAT plus shipping costs
**Subject to prior sale
PVC Control cable, 11070099/100, LAPP
ÖLFLEX® SMART 108 - VDE-registered PVC control cable, flexible and numbered for various applications, 300/500V, also for YSLY or YY.
FEATURES
- Good chemical resistance
- Oil-resistant
- Flame-retardant
- High flexible
Technical Data
- Cable material: Copper, bright
- Core insulation material: PVC
- Color: gray
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Core insulation material | PVC | |
| Core colour sequence | black/green-yellow | |
| Number of cores | 7 | |
| Version | control line | |
| Outer diameter | 7.3 mm | |
| AWG cross-section | AWG 19 | |
| Colour | gray | |
| Halogen free | No | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 0.75 mm² | |
| Material | PVC | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Standard number | VDE | |
| Test voltage | 4 kV | |
| Shielding | unshielded | |
| Drag chain suitable | No | |
| Protective conductor available | Yes | |
| Temperature range (active) | -5 °C to 70 °C | |
| Temperature range (unmoved) | -40 °C to 80 °C |
Download
Logistics
| Country of origin | QU |
| Customs tariff number | 85444995 |
| Original Packaging | Ring with 100 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
