1120750 | LAPP

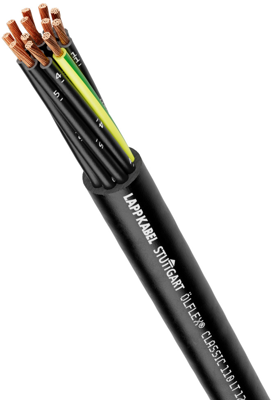

PVC control line ÖLFLEX CLASSIC 110 LT 2 x 1.5 mm², unshielded, black, 1120750
Order No.: 33P1278
EAN: 4044776972549
MPN:
1120750
ÖLFLEX CLASSIC 110 LT 2X1,5
Series: ÖLFLEX CLASSIC 110 LT
Unit Price (€ / mtr.)
1.6303 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Total Price:
1.63 € *
Price list
Quantity
Price per unit*
1 mtr.
1.6303 €
10 mtr.
1.4161 €
50 mtr.
1.3090 €
100 mtr.
1.2138 €
500 mtr.
1.1424 €
*incl. VAT plus shipping costs
**Subject to prior sale
Control line, 1120750, LAPP
Features
- Flame-retardant
- Flexible down to -30°C
- UV and weather-resistant
- Ozone-resistant
Applications
- Plant engineering, Industrial machinery
- Heating and air-conditioning systems
- Freezing plants, cold storage
- Suitable for outdoor applications
- Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
Technical specifications
| Core insulation material | PVC | |
| Core colour sequence | VDE 0293-1 | |
| Number of cores | 2 | |
| Version | control line | |
| Outer diameter | 6.3 mm | |
| Colour | black | |
| Halogen free | No | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 1.5 mm² | |
| Material | PVC | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Test voltage | 4 kV | |
| Shielding | unshielded | |
| Drag chain suitable | No | |
| Protective conductor available | No | |
| Temperature range (active) | -30 °C to 70 °C | |
| Temperature range (unmoved) | -40 °C to 80 °C |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
