1123463 | LAPP

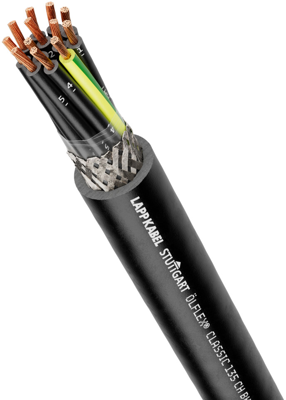

HFFR control line ÖLFLEX CLASSIC 135 CH BK 0,6/1 kV 5 G 1.0 mm², AWG 18, shielded, black, 1123463
Order No.: 33P1557
EAN: 4044774602653
MPN:
1123463
ÖLFLEX CLASSIC 135 CH BK 0,6/1 kV 5G1
Unit Price (€ / mtr.)
6.5569 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Control line, 1123463, LAPP
Features
- Flame-retardant
- No flame-propagation
- Halogen-free
- Low smoke density
- UV and weather-resistant
- Ozone-resistant
Applications
- Plant engineering, Industrial machinery
- Heating and air-conditioning systems
- Particularly where human and animal life as well as valuable property are exposed to high risk of fire hazards
- For outdoor applications
Technical specifications
| Core insulation material | HFFR | |
| Core colour sequence | VDE 0293-308 | |
| Number of cores | 5 | |
| Version | control line | |
| Outer diameter | 11.2 mm | |
| AWG cross-section | AWG 18 | |
| Colour | black | |
| Halogen free | Yes | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 1.0 mm² | |
| Material | HFFR | |
| Rated voltage | 1000 V | |
| Rated voltage U0 | 600 V | |
| Test voltage | 2 kV | |
| Shielding | shielded | |
| Drag chain suitable | No | |
| Protective conductor available | Yes | |
| Temperature range (active) | -25 °C to 70 °C | |
| Temperature range (unmoved) | -40 °C to 80 °C |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
