1123469 | LAPP

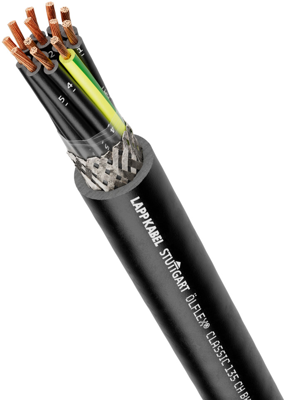

HFFR control line ÖLFLEX CLASSIC 135 CH BK 0,6/1 kV 3 G 1.5 mm², AWG 16, shielded, black, 1123469
Order No.: 33P1546
EAN: 4044774602899
MPN:
1123469
ÖLFLEX CLASSIC 135 CH BK 0,6/1 kV 3G1,5
Unit Price (€ / mtr.)
6.1761 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Control line, 1123469, LAPP
Features
- Flame-retardant
- No flame-propagation
- Halogen-free
- Low smoke density
- UV and weather-resistant
- Ozone-resistant
Applications
- Plant engineering, Industrial machinery
- Heating and air-conditioning systems
- Particularly where human and animal life as well as valuable property are exposed to high risk of fire hazards
- For outdoor applications
Technical specifications
| Aderisolationsmaterial | HFFR | |
| Adernfarbe | VDE 0293-308 | |
| Anzahl der Adern | 3 | |
| Ausführung | Steuerleitung | |
| Außendurchmesser | 10.9 mm | |
| AWG-Leiterquerschnitt | AWG 16 | |
| Farbe | schwarz | |
| Halogenfrei | Yes | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 1,5 mm² | |
| Material | HFFR | |
| Nennspannung | 1000 V | |
| Nennspannung U0 | 600 V | |
| Prüfspannung | 2 kV | |
| Schirmung | geschirmt | |
| Schleppkettentauglich | No | |
| Schutzleiter vorhanden | Yes | |
| Temperaturbereich (bewegt) | -25 °C bis 70 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 80 °C |
Download
Logistics
| Ursprungsland | FR |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
