1125208 | LAPP

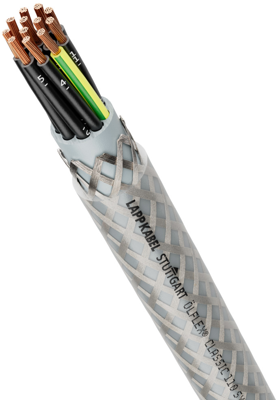

PVC control line ÖLFLEX CLASSIC 110 SY 8 G 1.0 mm², unshielded, transparent, 1125208
Order No.: 33P1377
EAN: 4044774564241
MPN:
1125208
ÖLFLEX CLASSIC 110 SY 8G1
Series: ÖLFLEX CLASSIC 110 SY
Unit Price (€ / mtr.)
5.1765 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Control line, 1125208, LAPP
Features
- Flame-retardant
- Good chemical resistance
Applications
- Plant engineering, Industrial machinery
- Heating and air-conditioning systems
- Areas with high mechanical stress
- For fixed installation as well as occasional flexing at free, non-continuously recurring movement without tensile load
Technical specifications
| Aderisolationsmaterial | PVC | |
| Adernfarbe | VDE 0293-1 | |
| Anzahl der Adern | 8 | |
| Ausführung | Steuerleitung | |
| Außendurchmesser | 12.5 mm | |
| Farbe | transparent | |
| Halogenfrei | No | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 1,0 mm² | |
| Material | PVC | |
| Nennspannung | 500 V | |
| Nennspannung U0 | 300 V | |
| Norm | VDE | |
| Prüfspannung | 4 kV | |
| Schirmung | ungeschirmt | |
| Schleppkettentauglich | No | |
| Schutzleiter vorhanden | Yes | |
| Temperaturbereich (bewegt) | -5 °C bis 70 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 80 °C |
Download
Logistics
| Ursprungsland | IN |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
