1127443 | LAPP

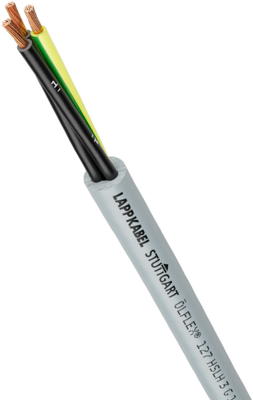

HFFR control line ÖLFLEX 127 HSLH 5 G 6.0 mm², unshielded, gray, 1127443
Unit Price (€ / mtr.)
16.0531 € *
Available: 0 mtr.
Leadtime: On Request **
Control cable, 1127443, LAPP
Halogen-free control cable, flexible and highly flame retardant, with CPR Cca, for building wiring.
Features
- Easy handling and installation due to flexible design
- High electrical performance due to 4 kV test voltage
- Flame-retardant
- Halogen-free
- Low smoke density
Applications
- Public buildings like airports or railway stations
- Plant engineering
- Industrial machinery
- Heating and air-conditioning systems
- Stage applications
Technical specifications
| Aderisolationsmaterial | HFFR | |
| Adernfarbe | schwarz/grün-gelb | |
| Anzahl der Adern | 5 | |
| Ausführung | Steuerleitung | |
| Außendurchmesser | 14.5 mm | |
| Farbe | grau | |
| Halogenfrei | Yes | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 6,0 mm² | |
| Material | HFFR | |
| Nennspannung | 500 V | |
| Nennspannung U0 | 300 V | |
| Norm | VDE | |
| Prüfspannung | 4 kV | |
| Schirmung | ungeschirmt | |
| Schleppkettentauglich | No | |
| Schutzleiter vorhanden | Yes | |
| Temperaturbereich (bewegt) | -5 °C bis 70 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 80 °C |
Download
Logistics
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
