1146105 | LAPP
PVC control line ÖLFLEX 195 CY 7 G 1.0 mm², AWG 18, shielded, gray, 1146105
Unit Price (€ / mtr.)
4.7005 € *
Available: 0 mtr.
Leadtime: 4 Weeks **

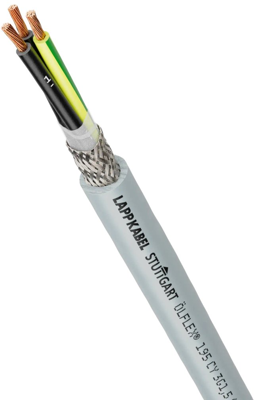

Control cable, 1146105, LAPP
This control cable offers ideal protection against electromagnetic interference thanks to copper screening braiding with a high degree of coverage. No inner sheath results in lower weight and smaller outer diameters.
Features
- Space-saving due to reduced wall thicknesses
- Optimised cost-effectiveness due to material savings
- High oil resistance according to DIN EN 50363-4-1 (TM5)
- High electrical safety thanks to 4000 V test voltage
- The PVC outer sheath is resistant to acids and alkalis
Applications
- For universal use for wiring machine-internal and cross-plant control circuits
- For use with metric SKINTOP/SKINDICHT cable glands
- For fixed installation and occasional flexing without tensile strain
- Suitable for medium mechanical stress
- Suitable for outdoor use, subject to the temperature range and only if protected against direct sunlight
Technical specifications
| Aderisolationsmaterial | PVC | |
| Adernfarbe | VDE 0293-1 | |
| Anzahl der Adern | 7 | |
| Ausführung | Steuerleitung | |
| Außendurchmesser | 9.5 mm | |
| AWG-Leiterquerschnitt | AWG 18 | |
| Farbe | grau | |
| Halogenfrei | No | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 1,0 mm² | |
| Material | PVC | |
| Nennspannung | 500 V | |
| Nennspannung U0 | 300 V | |
| Nennspannung UL/CSA | 600 V | |
| Norm | UL, CSA | |
| Prüfspannung | 4 kV | |
| Schirmung | geschirmt | |
| Schleppkettentauglich | No | |
| Schutzleiter vorhanden | Yes | |
| Temperaturbereich (bewegt) | -5 °C bis 70 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 70 °C |
Download
Logistics
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
