1146113 | LAPP
PVC control line ÖLFLEX 195 CY 2 x 1.5 mm², AWG 16, shielded, gray, 1146113
Unit Price (€ / mtr.)
3.3082 € *
Available: 0 mtr.
Leadtime: 4 Weeks **

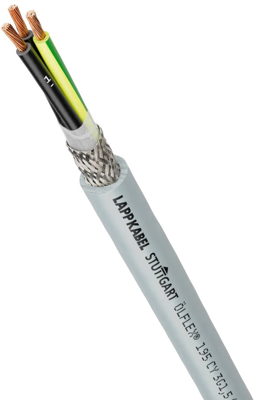

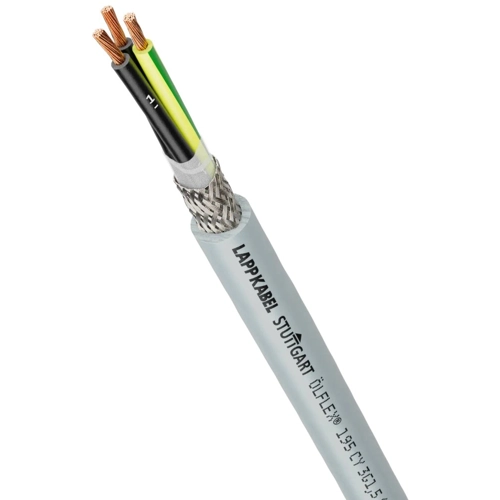

Control cable, 1146113, LAPP

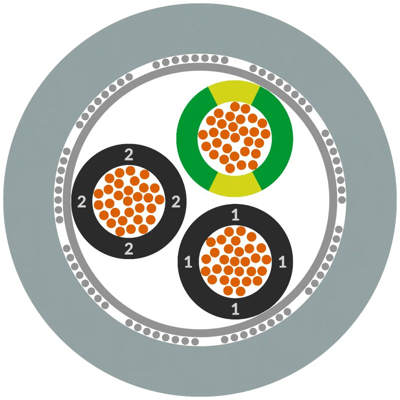

This control cable offers ideal protection against electromagnetic interference thanks to copper screening braiding with a high degree of coverage. No inner sheath results in lower weight and smaller outer diameters.
Features
- Space-saving due to reduced wall thicknesses
- Optimised cost-effectiveness due to material savings
- High oil resistance according to DIN EN 50363-4-1 (TM5)
- High electrical safety thanks to 4000 V test voltage
- The PVC outer sheath is resistant to acids and alkalis
Applications
- For universal use for wiring machine-internal and cross-plant control circuits
- For use with metric SKINTOP/SKINDICHT cable glands
- For fixed installation and occasional flexing without tensile strain
- Suitable for medium mechanical stress
- Suitable for outdoor use, subject to the temperature range and only if protected against direct sunlight
Technical specifications
| Version | Steuerleitung | |
| Number of cores | 2 | |
| Cable cross-section | 1,5 mm² | |
| AWG cross-section | AWG 16 | |
| Colour | grau | |
| Material | PVC | |
| Outer diameter | 7.5 mm | |
| Shielding | geschirmt | |
| Halogen free | No | |
| Protective conductor available | No | |
| Cable material | Kupfer, blank | |
| Conductor category | Kl.5 = feindrähtig | |
| Core insulation material | PVC | |
| Core colour sequence | VDE 0293-1 | |
| Drag chain suitable | No | |
| Standard number | UL, CSA | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Rated voltage UL/CSA | 600 V | |
| Temperature range (unmoved) | -40 °C bis 70 °C | |
| Temperature range (active) | -5 °C bis 70 °C | |
| Test voltage | 4 kV |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
