1308025 | LAPP
PUR control line ÖLFLEX 408 P 25 G 0.5 mm², unshielded, gray, 1308025
Unit Price (€ / mtr.)
9.4486 € *
Available: 0 mtr.
Leadtime: 6 Weeks **

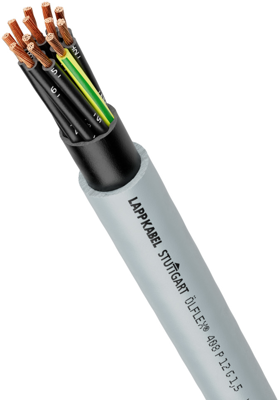

Control cable, 1308025, LAPP
Features
- High oil-resistance
- Abrasion and notch-resistant
- Low-adhesive surface
- Resistant to hydrolysis and microbes
Applications
- Appliance and apparatus construction
- Industrial machinery and machine tools
- Measurement, control and electrical applications
- Very suitable for oily wet areas within machinery and production lines that are subject to normal mechanical stress
- Under consideration of the temperature range also suitable for outdoor use
Technical specifications
| Core insulation material | PVC | |
| Core colour sequence | schwarz/grün-gelb | |
| Number of cores | 25 | |
| Version | Steuerleitung | |
| Outer diameter | 12.4 mm | |
| Colour | grau | |
| Halogen free | No | |
| Conductor category | Kl.5 = feindrähtig | |
| Cable material | Kupfer, blank | |
| Cable cross-section | 0,5 mm² | |
| Material | PUR | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Standard number | VDE | |
| Test voltage | 4 kV | |
| Shielding | ungeschirmt | |
| Drag chain suitable | No | |
| Protective conductor available | Yes | |
| Temperature range (active) | -15 °C bis 70 °C | |
| Temperature range (unmoved) | -40 °C bis 80 °C |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85444999 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
