1308125 | LAPP

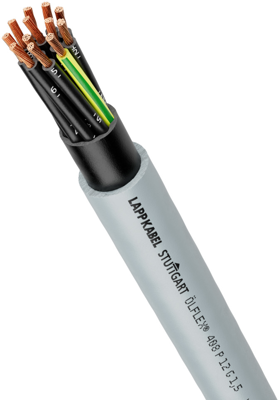

PUR control line ÖLFLEX 408 P 25 G 0.75 mm², unshielded, gray, 1308125
Unit Price (€ / mtr.)
15.0059 € *
Available: 0 mtr.
Leadtime: On Request **
Control cable, 1308125, LAPP
Features
- High oil-resistance
- Abrasion and notch-resistant
- Low-adhesive surface
- Resistant to hydrolysis and microbes
Applications
- Appliance and apparatus construction
- Industrial machinery and machine tools
- Measurement, control and electrical applications
- Very suitable for oily wet areas within machinery and production lines that are subject to normal mechanical stress
- Under consideration of the temperature range also suitable for outdoor use
Technical specifications
| Aderisolationsmaterial | PVC | |
| Adernfarbe | schwarz/grün-gelb | |
| Anzahl der Adern | 25 | |
| Ausführung | Steuerleitung | |
| Außendurchmesser | 13.8 mm | |
| Farbe | grau | |
| Halogenfrei | No | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 0,75 mm² | |
| Material | PUR | |
| Nennspannung | 500 V | |
| Nennspannung U0 | 300 V | |
| Norm | VDE | |
| Prüfspannung | 4 kV | |
| Schirmung | ungeschirmt | |
| Schleppkettentauglich | No | |
| Schutzleiter vorhanden | Yes | |
| Temperaturbereich (bewegt) | -15 °C bis 70 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 80 °C |
Download
Logistics
| Ursprungsland | FR |
| Zolltarifnummer | 85444999 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
