1600200/100 | LAPP
Rubber connection and control cable H05RR-F 3 G 1.5 mm², AWG 16, unshielded, black, 1600200/100
Unit Price (€ / mtr.)
2.6061 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
2.61 € *
Price list
Quantity
Price per unit*
1 mtr.
2.6061 €
10 mtr.
2.3800 €
50 mtr.
2.2134 €
100 mtr.
2.0349 €
500 mtr.
1.9040 €
*incl. VAT plus shipping costs
**Subject to prior sale

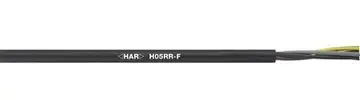

Power and control cable, 1600200/100, LAPP
H05RR-F, HAR-certified, power and control cable for household and handheld devices, rubber, class 5/flexible, indoor use, flame-retardant.
FEATURES
- Cold-resistant
- Ozone-resistant
- Flame-retardant
- HAR-certified
Technical Data
- Cable material: Copper, bright
- Core insulation material: Rubber
- Color: black
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Core insulation material | Gummi | |
| Core colour sequence | VDE 0293-308 | |
| Number of cores | 3 | |
| Version | Anschluss- und Steuerleitung | |
| Outer diameter | 10.4 mm | |
| AWG cross-section | AWG 16 | |
| Colour | schwarz | |
| Halogen free | No | |
| Conductor category | Kl.5 = feindrähtig | |
| Cable material | Kupfer, blank | |
| Cable cross-section | 1,5 mm² | |
| Material | Gummi | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Standard number | HAR | |
| Test voltage | 2 kV | |
| Shielding | ungeschirmt | |
| Drag chain suitable | No | |
| Protective conductor available | Yes | |
| Temperature range (active) | -25 °C bis 60 °C | |
| Temperature range (unmoved) | -25 °C bis 60 °C |
Download
Logistics
| Country of origin | QU |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
