1600208/100 | LAPP

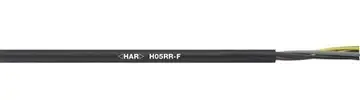

Rubber connection and control cable H05RR-F 3 G 1.0 mm², AWG 18, unshielded, black, 1600208/100
Unit Price (€ / mtr.)
2.3205 € *
Available: 0 mtr.
Leadtime: 7 Weeks **
Total Price:
2.32 € *
Price list
Quantity
Price per unit*
1 mtr.
2.3205 €
10 mtr.
2.1063 €
50 mtr.
1.9516 €
100 mtr.
1.7969 €
500 mtr.
1.7017 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power and control cable, 1600208/100, LAPP
H05RR-F, HAR-certified, power and control cable for household and handheld devices, rubber, class 5/flexible, indoor use, flame-retardant.
FEATURES
- Cold-resistant
- Ozone-resistant
- Flame-retardant
- HAR-certified
Technical Data
- Cable material: Copper, bright
- Core insulation material: Rubber
- Color: black
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Aderisolationsmaterial | Gummi | |
| Adernfarbe | VDE 0293-308 | |
| Anzahl der Adern | 3 | |
| Ausführung | Anschluss- und Steuerleitung | |
| Außendurchmesser | 8.5 mm | |
| AWG-Leiterquerschnitt | AWG 18 | |
| Farbe | schwarz | |
| Halogenfrei | No | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 1,0 mm² | |
| Material | Gummi | |
| Nennspannung | 500 V | |
| Nennspannung U0 | 300 V | |
| Norm | HAR | |
| Prüfspannung | 2 kV | |
| Schirmung | ungeschirmt | |
| Schleppkettentauglich | No | |
| Schutzleiter vorhanden | Yes | |
| Temperaturbereich (bewegt) | -25 °C bis 60 °C | |
| Temperaturbereich (unbewegt) | -25 °C bis 60 °C |
Download
Logistics
| Ursprungsland | IT |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
