1600602/100 | LAPP

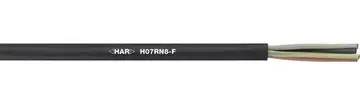

Rubber connection and control cable H07RN8-F 1 x 10 mm², AWG 8, unshielded, black, 1600602/100
Unit Price (€ / mtr.)
4.0579 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
405.79 € *
Price list
Quantity
Price per unit*
100 mtr.
4.0579 €
500 mtr.
3.6890 €
*incl. VAT plus shipping costs
**Subject to prior sale
Control cable, 1600602/100, LAPP
H07RN8-F, HAR, power and control cable, rubber, heavy, 450/750V, submersion up to a depth of 10 m, pump cable, class 5, oilresistant, flame-retardant.
FEATURES
- Cold-resistant
- Mechanical resistance
- Oil-resistant
- UV-resistant
Technical Data
- Cable material: Copper, bright
- Core insulation material: Rubber
- Color: black
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Core insulation material | Gummi | |
| Core colour sequence | VDE 0293-308 | |
| Number of cores | 1 | |
| Version | Anschluss- und Steuerleitung | |
| Outer diameter | 11.9 mm | |
| AWG cross-section | AWG 8 | |
| Colour | schwarz | |
| Halogen free | No | |
| Conductor category | Kl.5 = feindrähtig | |
| Cable material | Kupfer, blank | |
| Cable cross-section | 10 mm² | |
| Material | Gummi | |
| Rated voltage | 750 V | |
| Rated voltage U0 | 450 V | |
| Standard number | VDE | |
| Test voltage | 2.5 kV | |
| Shielding | ungeschirmt | |
| Drag chain suitable | No | |
| Protective conductor available | No | |
| Temperature range (active) | -25 °C bis 60 °C | |
| Temperature range (unmoved) | -40 °C bis 60 °C |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
