2206040/152 | LAPP
Polymer control line ÖLFLEX TRAY II CY 4 G 16 mm², AWG 6, shielded, black, 2206040/152
Order No.: 33P3399
EAN: 4044774612584
MPN:
2206040/152
ÖLFLEX TRAY II CY 4G16
Series: ÖLFLEX TRAY II CY
Unit Price (€ / mtr.)
63.665 € *
Available: 0 mtr.
Leadtime: 6 Weeks **

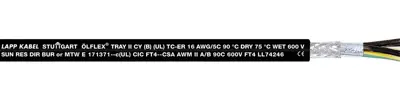

Control cable, 2206040/152, LAPP
The 2206040/152 is an industrial grade tray cable with superior oil performance for long cable life. It has a pressure extruded jacket and fine copper stranding for excellent flexibility making it easier to pull through Tray. Shielded with overall foil tape and tinned copper braid provides protection against EMI and RFI. No conduit required which provides savings on material costs and labor.
Features
- Suitable for outdoor use
- Flame-retardant
- Cold-resistant
- Mechanical resistance
- Oil-resistant
- Torsion-resistant
- UV-resistant
Applications
- Plant and Factory expansions
- Automotive plants
- Tray installations
Technical specifications
| Aderisolationsmaterial | PVC | |
| Anzahl der Adern | 4 | |
| Ausführung | Steuerleitung | |
| Außendurchmesser | 23.3 mm | |
| AWG-Leiterquerschnitt | AWG 6 | |
| Farbe | schwarz | |
| Halogenfrei | No | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 16 mm² | |
| Material | Polymer | |
| Nennspannung | 1000 V | |
| Nennspannung U0 | 600 V | |
| Nennspannung UL/CSA | 1000 V | |
| Norm | cUL, CSA | |
| Prüfspannung | 2 kV | |
| Schirmung | geschirmt | |
| Schleppkettentauglich | No | |
| Schutzleiter vorhanden | Yes | |
| Temperaturbereich (bewegt) | -25 °C bis 105 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 105 °C |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
