Polymer control line ÖLFLEX TRAY II CY 12 G 2.5 mm², AWG 14, shielded, black, 2214120/152
Order No.: 33P3386
EAN: 4044774613505
MPN:
2214120/152
ÖLFLEX TRAY II CY 12G2,5
Series: ÖLFLEX TRAY II CY
Unit Price (€ / mtr.)
36.9733 € *
Available: 0 mtr.
Leadtime: 6 Weeks **

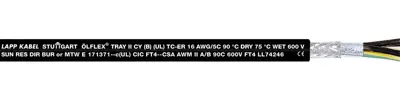

Control cable, 2214120/152, LAPP
The 2214120/152 is an industrial grade tray cable with superior oil performance for long cable life. It has a pressure extruded jacket and fine copper stranding for excellent flexibility making it easier to pull through Tray. Shielded with overall foil tape and tinned copper braid provides protection against EMI and RFI.No conduit required which provides savings on material costs and labor.
Features
- Suitable for outdoor use
- Flame-retardant
- Cold-resistant
- Mechanical resistance
- Oil-resistant
- Torsion-resistant
- UV-resistant
Applications
- Plant and Factory expansions
- Automotive plants
- Tray installations
Technical specifications
| Aderisolationsmaterial | PVC | |
| Anzahl der Adern | 12 | |
| Ausführung | Steuerleitung | |
| Außendurchmesser | 16.9 mm | |
| AWG-Leiterquerschnitt | AWG 14 | |
| Farbe | schwarz | |
| Halogenfrei | No | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 2,5 mm² | |
| Material | Polymer | |
| Nennspannung | 1000 V | |
| Nennspannung U0 | 600 V | |
| Nennspannung UL/CSA | 1000 V | |
| Norm | cUL, CSA | |
| Prüfspannung | 2 kV | |
| Schirmung | geschirmt | |
| Schleppkettentauglich | No | |
| Schutzleiter vorhanden | Yes | |
| Temperaturbereich (bewegt) | -25 °C bis 105 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 105 °C |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
