281812CY | LAPP

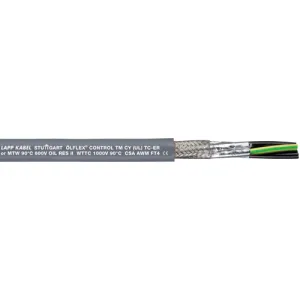

Thermoplastic control line ÖLFLEX CONTROL TM CY 12 G 1.0 mm², AWG 18, shielded, gray, 281812CY
Order No.: 33P5285
EAN: 4044774575575
MPN:
281812CY
ÖLFLEX CONTROL TM CY 12G1
Series: ÖLFLEX CONTROL TM CY
Unit Price (€ / mtr.)
14.2443 € *
Available: 0 mtr.
Leadtime: On Request **
Control line, 281812CY, LAPP
This 281812CY is industrial tray cable with excellent oil resistance for a long cable life. It has a pressure extruded jacket and fine stranded conductor for excellent flexibility that makes pulling through tray easier.
Features
- Flame-retardant
- Oil-resistant
- Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
- Technically resistant to sunlight and ozone
Technical specifications
| Aderisolationsmaterial | PVC | |
| Adernfarbe | schwarz | |
| Anzahl der Adern | 12 | |
| Ausführung | Steuerleitung | |
| Außendurchmesser | 12.8 mm | |
| AWG-Leiterquerschnitt | AWG 18 | |
| Farbe | grau | |
| Halogenfrei | No | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 1,0 mm² | |
| Material | Thermoplast | |
| Nennspannung | 1000 V | |
| Nennspannung U0 | 600 V | |
| Nennspannung UL/CSA | 1000 V | |
| Norm | UL, CSA | |
| Prüfspannung | 2 kV | |
| Schirmung | geschirmt | |
| Schleppkettentauglich | No | |
| Schutzleiter vorhanden | Yes | |
| Temperaturbereich (bewegt) | -25 °C bis 70 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
