4533111 | LAPP

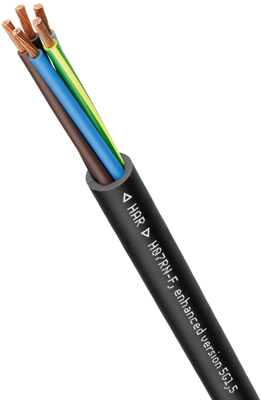

Rubber connection cable H07RN-F, erweiterte Version 7 G 1.5 mm², unshielded, black, 4533111
Order No.: 33P3277
EAN: 4044776710288
MPN:
4533111
H07RN-F, ENHANCED VERSION 7G1,5
Series: H07RN-F, erweiterte Version
Unit Price (€ / mtr.)
9.4724 € *
Available: 0 mtr.
Leadtime: On Request **
Power and control cable, 4533111, LAPP
The 4533111 designed for connecting equipment for heavy stress and connecting industrial and agricultural machines where cables underlie medium mechanical stress. and connecting industrial and agricultural machines where cables underlie medium mechanical stress. (e.g. machine tools, hot plates, lamps, electrical tools). In compliance with recommended application acc to. DIN EN 50565-2, H07RN-F, enhanced version is suitable for use in dry, damp or wet rooms as well as outdoors. Fixed installation such as on plaster in provisory buildings and barracks are allowed. Continuous operational movements, restricted guidance, usage of these cables in moving cable carriers or on motor drum guidance or under a strain of more than 15 N/mm².
Technical specifications
| Core insulation material | Gummi | |
| Core colour sequence | schwarz | |
| Number of cores | 7 | |
| Version | Anschlussleitung | |
| Outer diameter | 18.7 mm | |
| Colour | schwarz | |
| Halogen free | Yes | |
| Conductor category | Kl.5 = feindrähtig | |
| Cable material | Kupfer, blank | |
| Cable cross-section | 1,5 mm² | |
| Material | Gummi | |
| Rated voltage | 750 V | |
| Rated voltage U0 | 450 V | |
| Test voltage | 2.5 kV | |
| Shielding | ungeschirmt | |
| Drag chain suitable | No | |
| Protective conductor available | Yes | |
| Temperature range (active) | -40 °C bis 90 °C | |
| Temperature range (unmoved) | -50 °C bis 90 °C |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
