7038886 | LAPP

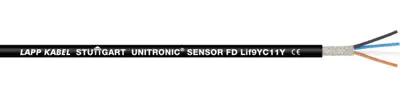

PUR sensor line UNITRONIC SENSOR FD 4 x 0.34 mm², shielded, black, 7038886
Order No.: 33P270
EAN: 4044776141877
MPN:
7038886
UNITRONIC SENSOR FD Lif9YC11Y 4x0,34
Series: UNITRONIC SENSOR FD
Unit Price (€ / mtr.)
4.3911 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Total Price:
4.39 € *
Price list
Quantity
Price per unit*
100 mtr.
4.3911 €
500 mtr.
4.1293 €
*incl. VAT plus shipping costs
**Subject to prior sale
Sensor/actuator cable, 7038886, LAPP
High flexible cable for sensor/actuator cabling for use in drag chains.
Features
- UV-resistant
- Mechanical resistance
- Power chain
- Halogen-free
- Flame-retardant
- Designed for 4 million alternating bending cycles and travel distances up to 10 m
Applications
- Automation technology
- Sensor/actuator cabling
- Mechanical and plant engineering
- Assembly and production lines
Technical specifications
| Aderisolationsmaterial | PP | |
| Anzahl der Adern | 4 | |
| Ausführung | Sensor-Leitung | |
| Außendurchmesser | 4.6 mm | |
| Farbe | schwarz | |
| Halogenfrei | Yes | |
| Leiterklasse | Kl.6 = feinstdrähtig | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 0,34 mm² | |
| Material | PUR | |
| Nennspannung | 300 V | |
| Norm | UL | |
| Schirmung | geschirmt | |
| Schleppkettentauglich | Yes | |
| Schutzleiter vorhanden | No | |
| Temperaturbereich (bewegt) | -25 °C bis 80 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 80 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444993 |
| Originalverpackung | Ring mit 100 Meter |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
