73220235 | LAPP
PUR spiral cord UNITRONIC SPIRAL 18 x 0.14 mm², AWG 26, shielded, black, 73220235
Order No.: 32P6075
EAN: 4044773326697
MPN:
73220235
UNITRONIC SPIRAL 18X0,14/100
Series: UNITRONIC SPIRAL
Unit Price (€ / pc.)
59.5595 € *
Available: 0 pcs.
Leadtime: On Request **

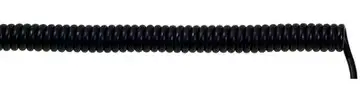

Spiral cable, 73220235, LAPP KABEL
Shielded PUR spiral cable, abrasion-resistant data and control cable for use in data processing, measurement and control engineering.
Features
- Mechanical resistance
- Oil-resistant
- Interference signals
- Abrasion and cut-resistant
Technical specifications
| Core insulation material | PVC | |
| Core colour sequence | DIN 47100 | |
| Number of cores | 18 | |
| Version | Spiralleitung | |
| Outer diameter | 29 mm | |
| AWG cross-section | AWG 26 | |
| Colour | schwarz | |
| Halogen free | No | |
| Conductor category | Kl.6 = feinstdrähtig | |
| Cable material | Kupfer, blank | |
| Cable cross-section | 0,14 mm² | |
| Material | PUR | |
| Rated voltage | 250 V | |
| Standard number | VDE | |
| Test voltage | 1.2 kV | |
| Shielding | geschirmt | |
| Drag chain suitable | No | |
| Protective conductor available | No | |
| Temperature range (active) | -5 °C bis 50 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444993 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
