73220237 | LAPP
PUR spiral cable UNITRONIC SPIRAL 18 x 0.14 mm², AWG 26, shielded, black, 73220237
Order No.: 32P6077
EAN: 4044773326673
MPN:
73220237
UNITRONIC SPIRAL 18X0,14/300
Series: UNITRONIC SPIRAL
Unit Price (€ / pc.)
89.6903 € *
Available: 0 pcs.
Leadtime: On Request **

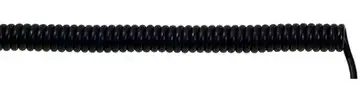

Spiral cable, 73220237, LAPP KABEL
Shielded PUR spiral cable, abrasion-resistant data and control cable for use in data processing, measurement and control engineering.
Features
- Mechanical resistance
- Oil-resistant
- Interference signals
- Abrasion and cut-resistant
Technical specifications
| Aderisolationsmaterial | PVC | |
| Adernfarbe | DIN 47100 | |
| Anzahl der Adern | 18 | |
| Ausführung | Spiralleitung | |
| Außendurchmesser | 29 mm | |
| AWG-Leiterquerschnitt | AWG 26 | |
| Farbe | schwarz | |
| Halogenfrei | No | |
| Leiterklasse | Kl.6 = feinstdrähtig | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 0,14 mm² | |
| Material | PUR | |
| Nennspannung | 250 V | |
| Norm | VDE | |
| Prüfspannung | 1.2 kV | |
| Schirmung | geschirmt | |
| Schleppkettentauglich | No | |
| Schutzleiter vorhanden | No | |
| Temperaturbereich (bewegt) | -5 °C bis 50 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444993 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
