8712040S | LAPP

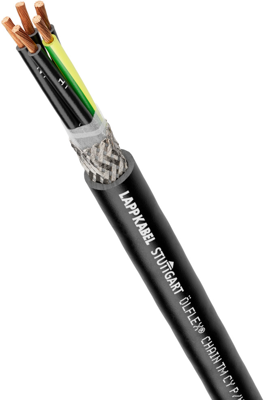

PVC control line ÖLFLEX CHAIN TM CY 4 G 4.0 mm², AWG 12, shielded, black, 8712040S
Order No.: 33P750
EAN: 4064728778708
MPN:
8712040S
ÖLFLEX CHAIN TM CY 4G12AWG
Series: ÖLFLEX CHAIN TM CY
Unit Price (€ / mtr.)
23.0503 € *
Available: 0 mtr.
Leadtime: On Request **
Control line, 8712040S, LAPP
Features
- High oil-resistance
- Flame retardant
- Sunlight Resistant; Direct Burial
- Water-resistant, UL 75°C WET rating
Applications
- In power chains or moving machine parts
- Static open wiring on and between cable tray an industrial machine
- Industrial machinery and machine tools
- Wind turbine engineering
- Linear robots, automated handling equipment
Technical specifications
| Core insulation material | PVC | |
| Core colour sequence | schwarz/grün-gelb | |
| Number of cores | 4 | |
| Version | Steuerleitung | |
| Outer diameter | 13.1 mm | |
| AWG cross-section | AWG 12 | |
| Colour | schwarz | |
| Halogen free | No | |
| Conductor category | Kl.6 = feinstdrähtig | |
| Cable material | Kupfer, blank | |
| Cable cross-section | 4,0 mm² | |
| Material | PVC | |
| Rated voltage UL/CSA | 600 V | |
| Standard number | UL, CSA | |
| Test voltage | 2 kV | |
| Shielding | geschirmt | |
| Drag chain suitable | Yes | |
| Protective conductor available | Yes | |
| Temperature range (active) | -25 °C bis 90 °C | |
| Temperature range (unmoved) | -40 °C bis 90 °C |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
