Deutsch DE

44423121 | LAPP

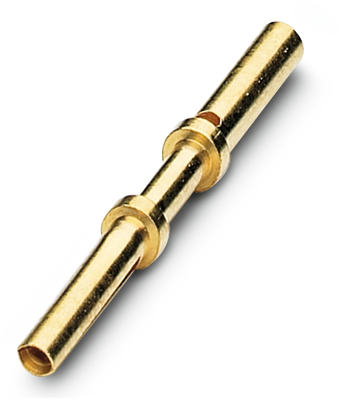

Receptacle, 1.0-2.5 mm², AWG 17-14, crimp connection, gold-plated, 44423121

Order No.: 33P3832
EAN: 4044776705536
MPN:
44423121
EPIC M17 BCMS 2MM 1,0-2,5
Series: EPIC M17 Kontakte
LAPP
44423121 LAPP Crimp Contacts
Image may differ
Print
Key Specification:
Ausführung Buchsenkontakt
Leiterquerschnitt 1,0-2,5 mm²
AWG-Leiterquerschnitt AWG 17-14
Kontaktanschluss Crimpanschluss
Kontaktmaterial Messing
Show 8 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.8564 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
18.56 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
1.8564 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Crimp contact, 44423121, LAPP

M17 Contact for the M17 circular connector
Technical specifications
Ausführung Buchsenkontakt
AWG-Leiterquerschnitt AWG 17-14
Isolationsdurchmesser 2 mm
Kontaktanschluss Crimpanschluss
Kontaktmaterial Messing
Kontaktoberfläche vergoldet
Leiterquerschnitt 1,0-2,5 mm²
Show similar products 0
Logistics
Ursprungsland DE
Zolltarifnummer 85389099
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
