44423122 | LAPP

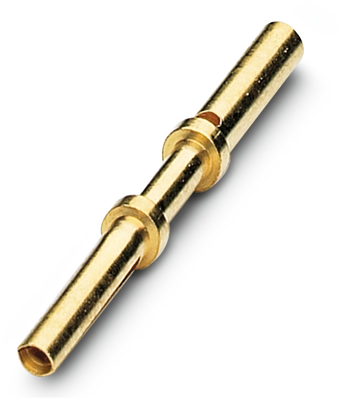

Receptacle, 0.06-0.25 mm², AWG 29-23, crimp connection, gold-plated, 44423122

Order No.: 33P3828
EAN: 4044776705543
MPN:
44423122
EPIC M17 BCMS 1MM 0,06-0,25
Series: EPIC M17 Kontakte
LAPP
44423122 LAPP Crimp Contacts
Image may differ
Print
Key Specification:
Ausführung Buchsenkontakt
Leiterquerschnitt 0,06-0,25 mm²
AWG-Leiterquerschnitt AWG 29-23
Kontaktanschluss Crimpanschluss
Kontaktmaterial Messing
Show 8 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
2.1539 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
21.54 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
2.1539 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Crimp contact, 44423122, LAPP

M17 Contact for the M17 circular connector
Technical specifications
Ausführung Buchsenkontakt
AWG-Leiterquerschnitt AWG 29-23
Isolationsdurchmesser 1 mm
Kontaktanschluss Crimpanschluss
Kontaktmaterial Messing
Kontaktoberfläche vergoldet
Leiterquerschnitt 0,06-0,25 mm²
Show similar products 0
Logistics
Ursprungsland DE
Zolltarifnummer 85389099
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
