0027436 | LAPP
PVC data cable, 18-wire, 0.25 mm², gray, 0027436
Unit Price (€ / mtr.)
6.8425 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Total Price:
6.84 € *
Price list
Quantity
Price per unit*
100 mtr.
6.8425 €
500 mtr.
6.4022 €
*incl. VAT plus shipping costs
**Subject to prior sale

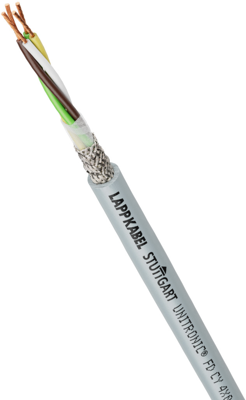

Screened highly flexible data transmission cable, 0027436, LAPP
The 0027436 is a high flexible, screened data cable with an outer sheath from PVC. The cable is designed for special use in power chains, automatic manipulators and in permanently moved machine parts.
Features
- Interference signals
- Low-adhesive surface
- Flame-retardant
Technical specifications
| Aderisolationsmaterial | PVC | |
| Anzahl der Adern | 18 | |
| Ausführung | Datenkabel | |
| Außendurchmesser | 9.1 mm | |
| Farbe | grau | |
| Halogenfrei | No | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 0,25 mm² | |
| Material | PVC | |
| Schirmung | geschirmt | |
| Schleppkettentauglich | Yes | |
| Temperaturbereich (bewegt) | -5 °C bis 70 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 80 °C |
Download
Logistics
| Ursprungsland | MY |
| Zolltarifnummer | 85444993 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
