0027841/100 | LAPP
PVC data cable, 3-wire, 0.14 mm², AWG 26, gray, 0027841/100
Unit Price (€ / mtr.)
1.7017 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
1.70 € *
Price list
Quantity
Price per unit*
1 mtr.
1.7017 €
10 mtr.
1.4042 €
50 mtr.
1.3090 €
100 mtr.
1.2376 €
*incl. VAT plus shipping costs
**Subject to prior sale

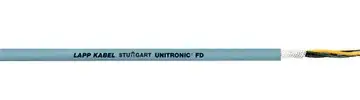

PVC data cable, 0027841/100, LAPP KABEL
Low-frequency PVC data cable, highly flexible for power chain use.
Features
- Power chain
- Flame-retardant
- Highly flexible
- Low-adhesive surface
Technical specifications
| Aderisolationsmaterial | PVC | |
| Anzahl der Adern | 3 | |
| Ausführung | Datenkabel | |
| Außendurchmesser | 3.9 mm | |
| AWG-Leiterquerschnitt | AWG 26 | |
| Farbe | grau | |
| Halogenfrei | No | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 0,14 mm² | |
| Material | PVC | |
| Temperaturbereich (bewegt) | -5 °C bis 70 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 80 °C |
Download
Logistics
| Ursprungsland | IT |
| Zolltarifnummer | 85444993 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
