0028674/100 | LAPP

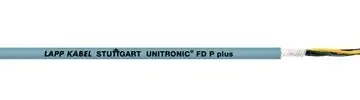

PUR data cable, 18-wire, 0.34 mm², AWG 24, gray, 0028674/100
Order No.: 32P3977
EAN: 4044774904771
MPN:
0028674/100
UNITRONIC FD P 18X0,34
Series: UNITRONIC FD P plus A
Unit Price (€ / mtr.)
12.2808 € *
Available: 0 mtr.
Leadtime: On Request **
PUR data cable, 0028674/100, LAPP KABEL
Screened highly flexible PUR data transmission cable with low-frequency.
Features
- Wind Energy
- Mechanical resistance
- Oil-resistant
- Cold-resistant
Technical specifications
| Aderisolationsmaterial | PE | |
| Anzahl der Adern | 18 | |
| Ausführung | Datenkabel | |
| Außendurchmesser | 9 mm | |
| AWG-Leiterquerschnitt | AWG 24 | |
| Farbe | grau | |
| Halogenfrei | Yes | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 0,34 mm² | |
| Material | PUR | |
| Schirmung | ungeschirmt | |
| Temperaturbereich (bewegt) | -40 °C bis 80 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 80 °C |
Download
Logistics
| Ursprungsland | IT |
| Zolltarifnummer | 85444993 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
